IT administrator's tasks

Environment Variables

Throughout this section we will be discussing procedures that involve resetting the passwords used in the deployment through the inventory file. As is known, this file is edited at the time of installation, but later returns to its original state leaving all the variables and their values ​​available as operating system environment variables.

To consult these variables we can execute a cat on the /etc/profile.d/omnileads_envars.sh file of the omlapp Container:

cat /etc/profile.d/omnileads_envars.sh

AMI_USER=omnileadsami
AMI_PASSWORD=5_MeO_DMT
ASTERISK_IP=192.168.95.163
ASTERISK_HOSTNAME=localhost.localdomain
ASTERISK_LOCATION=/opt/omnileads/asterisk
CALIFICACION_REAGENDA=Agenda
DJANGO_PASS=098098ZZZ
DJANGO_SETTINGS_MODULE=ominicontacto.settings.production
EPHEMERAL_USER_TTL=28800
EXTERNAL_PORT=443
INSTALL_PREFIX=/opt/omnileads/
KAMAILIO_IP=192.168.95.163
KAMAILIO_HOSTNAME=localhost.localdomain
KAMAILIO_LOCATION=/opt/omnileads/kamailio
MONITORFORMAT=mp3
NGINX_HOSTNAME=localhost.localdomain
OMNILEADS_HOSTNAME=localhost.localdomain
PGHOST=localhost.localdomain
PGDATABASE=omnileads
PGUSER=omnileads
PGPASSWORD=my_very_strong_pass
PYTHONPATH=$INSTALL_PREFIX
REDIS_HOSTNAME=localhost
SESSION_COOKIE_AGE=3600
TZ=America/Argentina/Cordoba
WOMBAT_HOSTNAME=localhost.localdomain
WOMBAT_USER=demoadmin
WOMBAT_PASSWORD=demo

export AMI_USER AMI_PASSWORD ASTERISK_IP ASTERISK_HOSTNAME ASTERISK_LOCATION CALIFICACION_REAGENDA DJANGO_SETTINGS_MODULE DJANGO_PASS EPHEMERAL_USER_TTL EXTERNAL_PORT INSTALL_PREFIX KAMAILIO_IP KAMAILIO_HOSTNAME KAMAILIO_LOCATION MONITORFORMAT NGINX_HOSTNAME OMNILEADS_HOSTNAME PGHOST PGDATABASE PGUSER PGPASSWORD PYTHONPATH REDIS_HOSTNAME SESSION_COOKIE_AGE TZ WOMBAT_HOSTNAME WOMBAT_USER WOMBAT_PASSWORD

This way the administrator will be able to use all these operating parameters whenever he wants.

Important: Do not edit this file under any conditionsConfiguración del módulo de Discador predictivo

Note

First of all, please note that if the OML instance deployed in the previous steps does NOT contemplate the use of predictive outbound dialing campaigns, this step can be skipped.

OMniLeads requires a third-party tool to implement predictive dialer campaigns. This tool is based on commercial software licenses that must be managed with the manufacturer. In any case, the system can be used with a test channel that is provided as a demo.

Therefore, we can configure the component and run proof of concept before acquiring licenses for real operation. If you want to run predictive campaigns, you must install Wombat Dialer on a separate host according to the manufacturer's official documentation. After that, generate the basic Wombat Dialer configuration for the integration.

To generate this configuration, we must follow a series of steps that begin with accessing the corresponding URL.

http://wombat.my.domain:8080/wombat or http://XXX.XXX.XXX.OML:8080/wombat

Creating a database

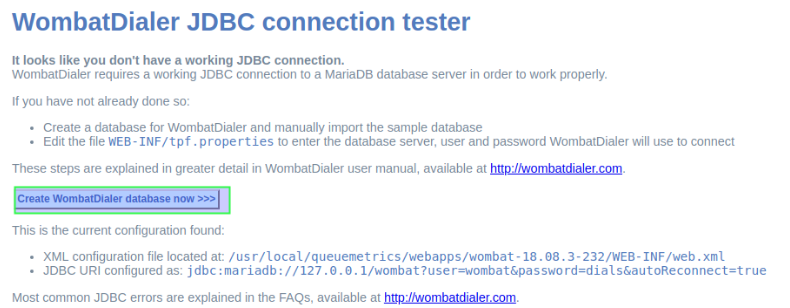

When you log in for the first time, you must proceed with the creation of the MariaDB database that Wombat Dialer uses. Click on the button highlighted in Figure 1.

Figure 1: DB create

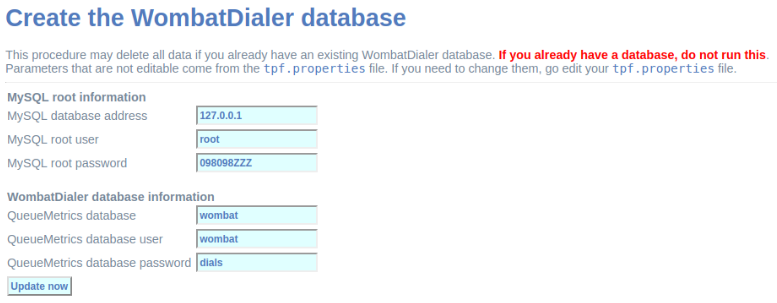

Then it is time to enter the MySQL root user password and click on the button highlighted in figure 2.

NOTE

Starting with version 1.6.0 OMniLeads does not set the MySQL root user password, leave this field empty. Unless the Administrator has generated a MySQL root password.

We then proceed with the creation of the MySQL database that the Wombat Dialer component will use from now on.

IMPORTANT: In the example, the "MySQL database address" field must be modified from 127.0.0.1 to the IP of the host where Wombat Dialer has been installed.

Figure 2: MySQL root password

First login

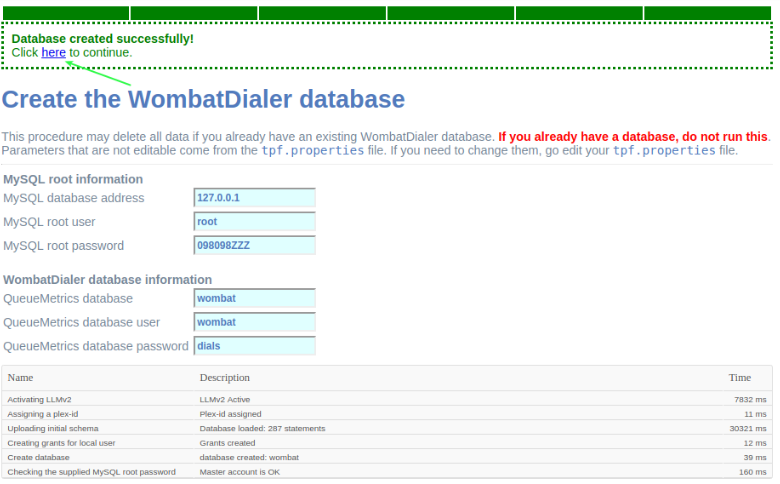

Once the MariaDB database used by Wombat Dialer has been created, the first login is performed.

Figure 3: Login post db create

Next, you must log in to the Wombat Dialer administration interface to proceed with the configuration of the parameters necessary for interaction with OML.

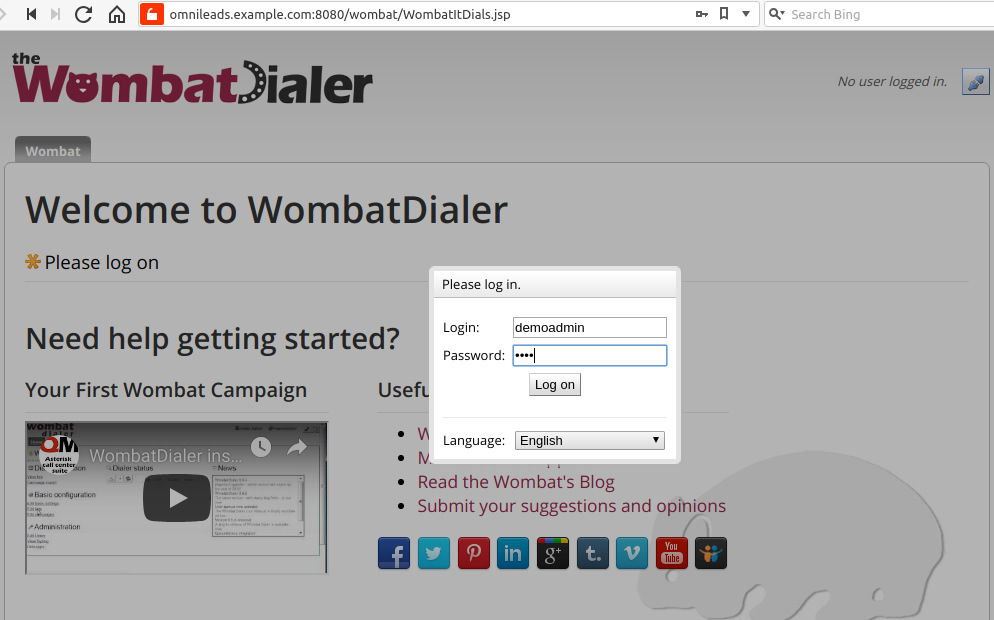

Upon entering, a screen like the following is displayed, where you must access with the user and passwords that were generated during the installation.

Figure 4: Access to WD

Changing web credentials

By default Wombat Dialer comes with the web credentials demoadmin as user and demo as pass. These credentials can be changed, to do this:

First, the credentials must be defined in the inventory file, they are the variables dialer_user and dialer_password. See about_install_inventory_vars.

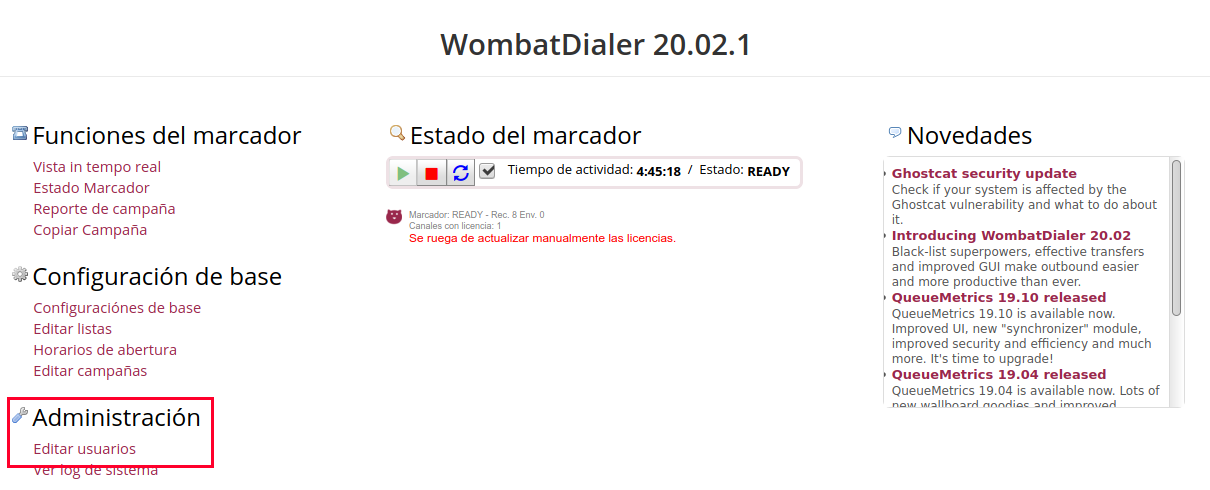

Log in to Wombat Dialer via web, and go to Administration -> Edit users.

Figure 5: WD change credentials

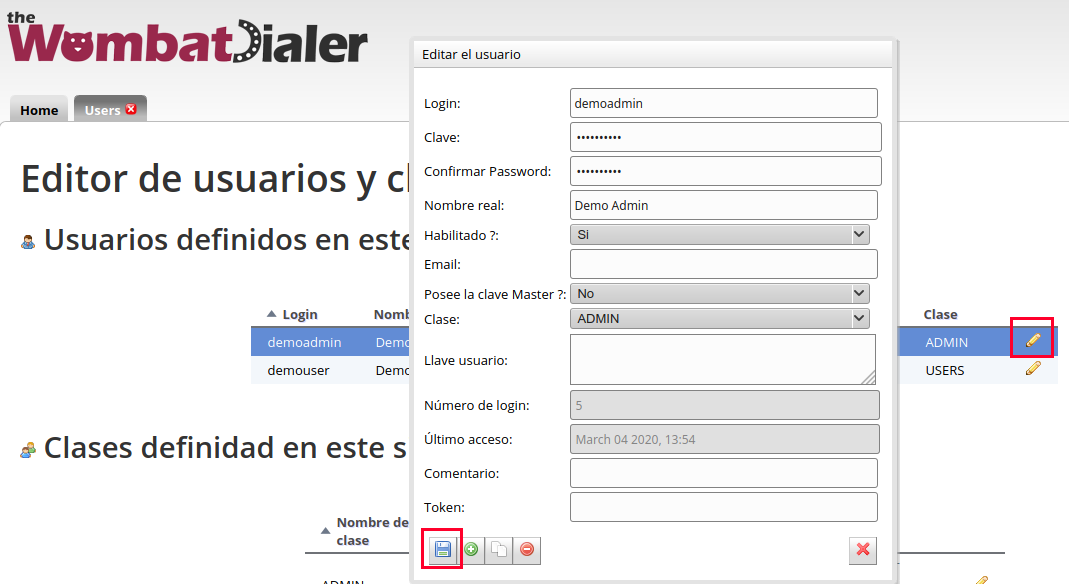

• There you can see the demoadmin user, click on the pencil icon, change the user in Login to the same user entered in the dialer_user variable, enter the same password entered in dialer_password.

• Finally click on the Save button.

Figure 6: WD change credentials 2

• Once finished, reload the page and log in with the new credentials.

AMI Credentials

Note

Starting with release-1.8.0, keep this in mind Wombat Dialer will use separate AMI credentials than OMniLeads, so a wombatami user is created in the oml_manager.conf file.

The password for this AMI user is changed based on what the user entered in the ami_password parameter in the inventory file. By default it looks like this:

[wombatami]
secret =  5_MeO_DMT
deny = 0.0.0.0/0.0.0.0
permit = 127.0.0.1/255.255.255.255
read = all
write = all

Basic Parameters

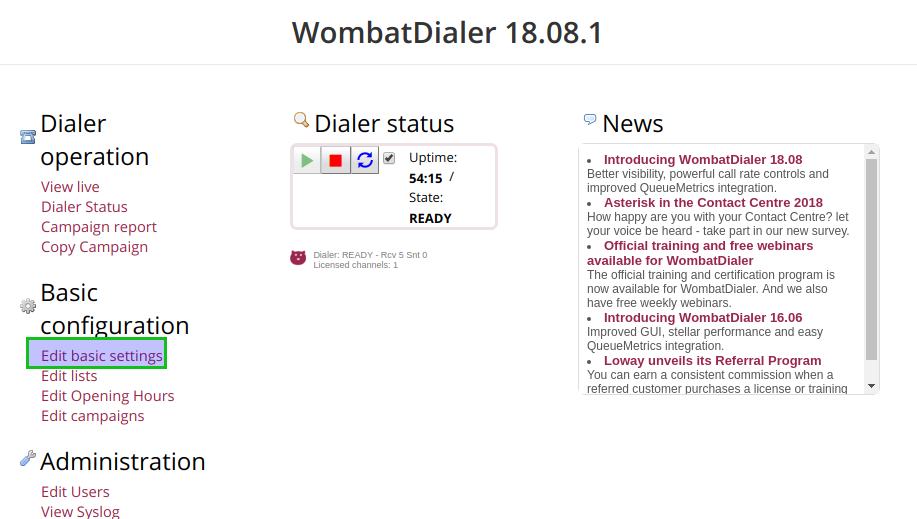

Once inside the system, we proceed to configure two basic parameters necessary to prepare the integration with OMniLeads. To do this, we must access the “Basic Configuration” menu as indicated in Figure 7.

Figure 7: WD basic config

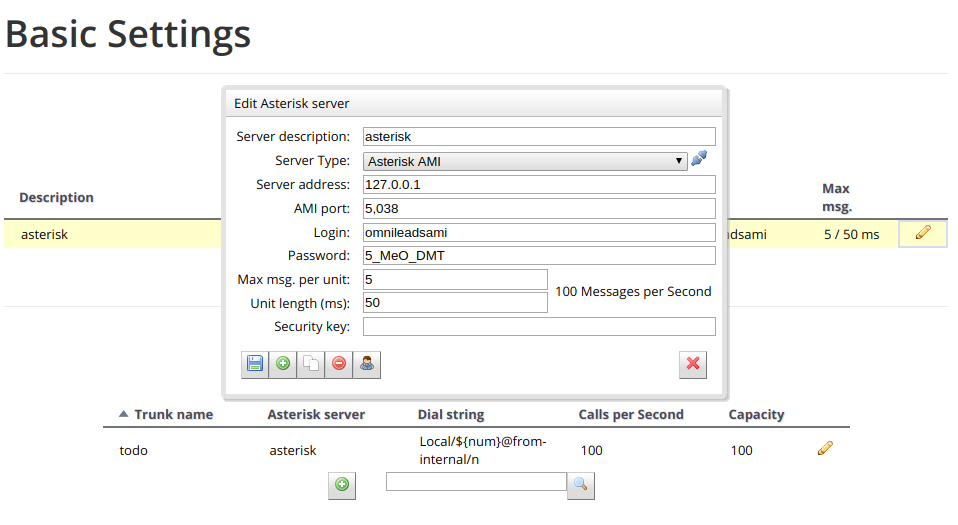

In this menu, a new connection instance must first be generated within the “Asterisk Servers” section as shown in Figure 8.

Figure 8: WD basic config - AMI Asterisk

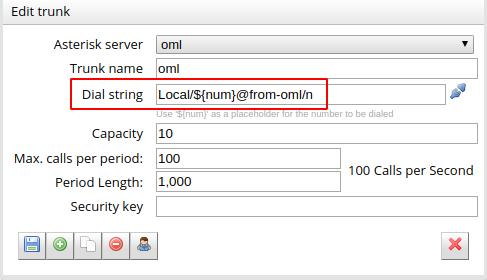

In the next step, a Trunk is configured using an arbitrary “Trunk Name”, but with the calling chain marked in Figure 9. Local/${num}@from-oml/n

Figure 9: WD basic config - Asterisk Trunk

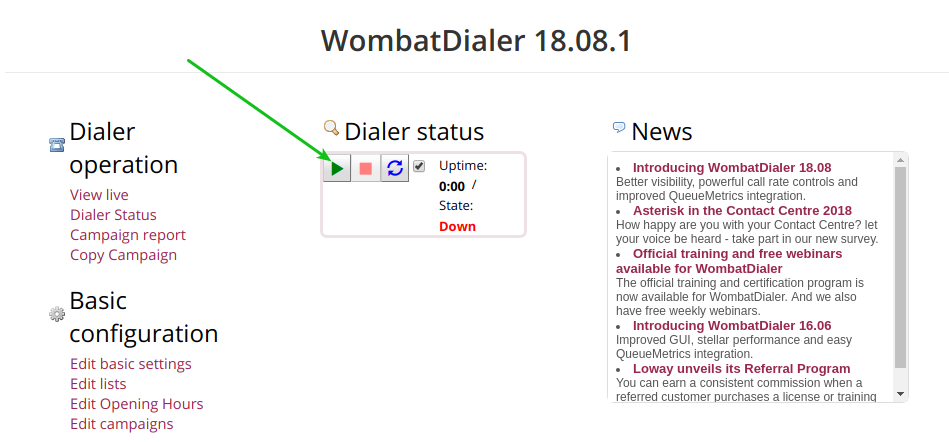

Finally, remember to press “play” on the dialer service, as indicated in the following figure 10.

Figure 10: WD activate

Finally, the platform is enabled to manage predictive calls. The default installation includes a Wombat Dialer demo license for one channel.

Unlocking users

OMniLeads has a user blocking system, when a user enters the wrong password three times. This is a security measure implemented to avoid brute force attacks on the platform's login console. The administrator user has the possibility of unblocking a user who has been blocked for accidentally entering the wrong password.

To unlock it, enter the following URL: https://omnileads-hostname/admin, this URL displays the so-called Django Admin Console.

Figure 15: Django admin console

There, enter the admin user credentials. Then click on the Defender button.

Figure 16: Defender in django admin

This opens the Django Defender administration (https://github.com/kencochrane/django-defender) which is the Django plugin used to handle this. Click on Blocked Users

Figure 17: Blocked users view

The blocked user will be displayed. Simply click Unblock to unblock them.

Figure 18: Unblock user view

The user will now be able to log in without any problem.
